What Is a Single Shaft Shredder Knife?

Industrial shredding systems rely heavily on their core cutting components to process difficult materials efficiently. A single shaft shredder knife functions not merely as a cutting tool but as the primary variable dictating a machine’s throughput, energy consumption, and operational uptime. When blades perform optimally, machines run smoothly. When they fail, the entire production line stops.

Incorrect blade geometry or sub-optimal metallurgy consistently leads to premature wear. You might experience excessive machine vibration. These issues inevitably cause costly unplanned downtime. Operators often struggle to maintain output levels when blades lose their edge too quickly.

This article provides plant managers and procurement engineers an evidence-based framework. We will explore how to evaluate, specify, and source high-performance shredder machine blade solutions. You will learn the exact mechanics, material science, and design geometries required to optimize your shredding operations.

Key Takeaways

• System Interaction: Single shaft cutting relies on the precise interaction between dynamic rotor knives and stationary shredder knives.

• Material Science: Optimal blade life requires a strict balance between hardness and toughness; standard D2 steel is common, but DC53 or custom alloys offer superior wear resistance for high-impact applications.

• Design Influence: The geometry of the knife (flat, concave, or crown/V-shape) directly dictates the output size, cutting efficiency, and suitability for specific materials.

• OEM Compatibility: Premium aftermarket blades can match or exceed OEM specifications (e.g., Vecoplan, Weima, Lindner) if dimensional tolerances and heat-treatment protocols are rigorously verified.

1. The Core Mechanics: Rotor Knives vs. Stationary Shredder Knives

Understanding the exact mechanics inside the shredding chamber helps operators diagnose performance issues. Single shaft shredders utilize a specific mechanical sequence to break down bulky waste. The system relies heavily on a hydraulic ram or pusher. This component forces raw material against a high-speed rotating shaft. The action creates a high-torque shearing force. This force literally tears and slices the material apart.

The cutting process depends entirely on two distinct types of blades working together in perfect synchronization. If one component fails, the entire system loses efficiency.

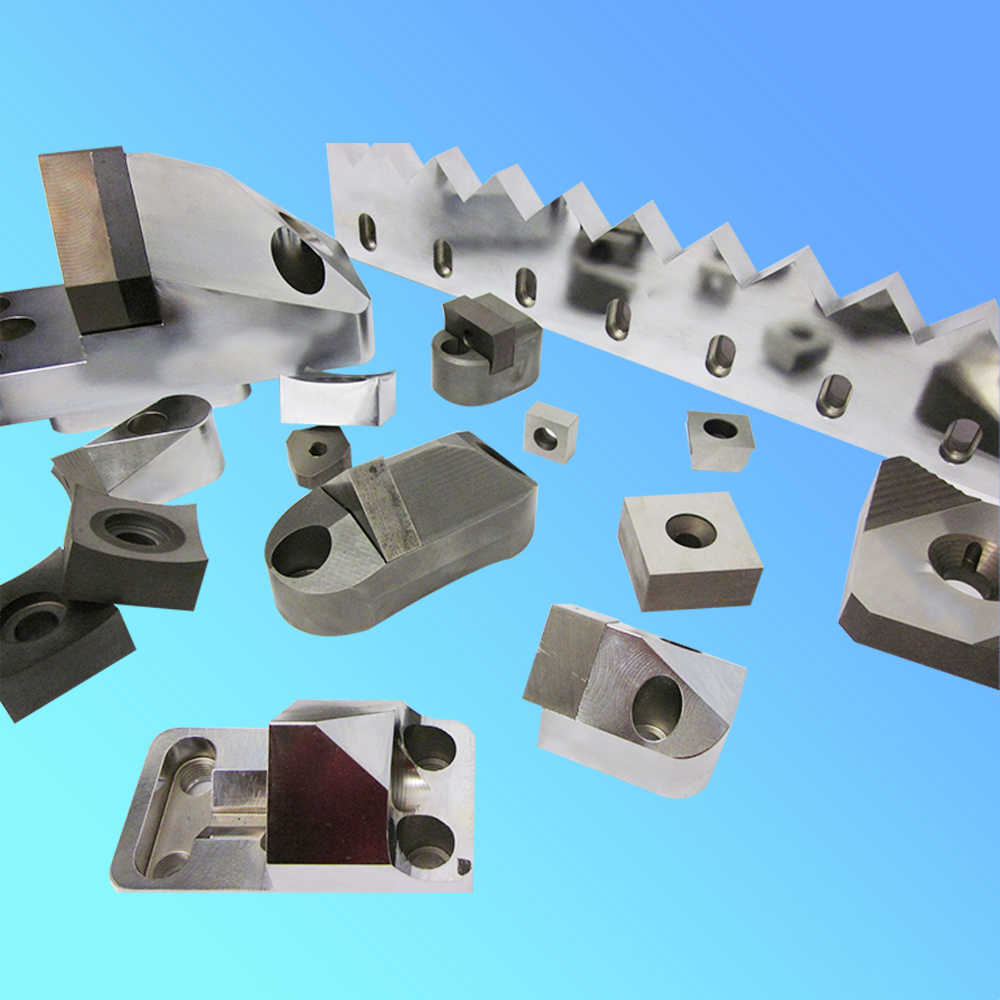

Rotor Knife (Dynamic Blade)

The rotor knife acts as the primary dynamic cutting tool. Manufacturers mount these blades directly onto the main rotating shaft. They handle the initial impact against the incoming material block.

Most modern facilities utilize a 4-way reversible design standard for these dynamic blades. This design provides significant operational advantages. When one edge becomes dull, maintenance teams simply unbolt the block. They rotate it 90 degrees to expose a fresh, sharp edge. They then bolt it back into place. This practice maximizes the total lifespan of the part before a full replacement becomes necessary.

Stationary Shredder Knife (Stator)

In contrast, the stationary shredder knife does not move. Technicians bolt it securely to the shredding chamber housing. You can think of it as the system's anvil or counter-knife.

As the dynamic blades rotate, they pass extremely close to the fixed stator blades. This close interaction enables a clean shearing action. Without a highly accurate stationary blade, materials would simply bounce around the chamber. Furthermore, the stator prevents flexible materials from wrapping around the rotating shaft. Wrapping causes immediate machine jams and severe motor strain.

1. The hydraulic pusher engages the material.

2. The rotating dynamic blades strike the material block.

3. The material gets trapped between the moving blade and the fixed counter-knife.

4. The intense shearing force breaks the material down to the desired size.

2. How Blade Geometry Impacts Shredding Performance

Many operators assume blade material dictates performance alone. However, the physical geometry of a recycling shredder knife directly impacts material friction, machine capacity, and energy draw. Selecting the wrong shape often leads to melted plastics, excessive dust, or frequent machine stalls.

Aligning Shape with Material Types

Different waste streams behave uniquely under pressure. The blade profile must match the physical characteristics of the target material.

• Flat Knives: These serve as the industry standard for general-purpose shredding. They offer a robust, blunt impact. You should use them for rigid, bulky materials like heavy wood blocks, thick plastic lumps, and solid purgings.

• Concave Knives: Engineers design these for aggressive cutting and cleaner shearing. The scooped center creates a sharper angle of attack. These work exceptionally well for flexible materials. Use them for agricultural films, woven bulk bags, and thin flexible plastics. They cut like scissors, preventing material folding.

• Crown / V-Shape Knives: These feature a raised center profile. They naturally force the material toward the center of the cutting block. This reduces side wear on the blade block. Facilities prefer V-shapes for heavy-duty processing because they significantly lower power consumption by concentrating the cutting force.

Clearance and Tolerances

Even the perfect blade geometry will fail if technicians install it improperly. The gap between the dynamic and fixed blades stands as the most critical measurement in the machine. Industry standards typically dictate a clearance between 0.2mm and 0.5mm.

If the gap is too wide, flexible materials will slip through uncut. They fold over the edges, creating intense friction. This friction quickly melts plastics and jams the rotor. If the gap is too tight, the metal parts might collide during heavy vibrations. A precise gap determines the final output particle size and guarantees continuous, jam-free operation.

3. Metallurgy and Heat Treatment: Sourcing the Right Material

Procurement teams often look for the hardest possible steel. They assume a harder blade lasts longer. This represents a dangerous misconception in the recycling sector.

The Hardness vs. Toughness Trade-off

Extreme hardness creates brittleness. When processing contaminated waste streams, operators frequently encounter tramp metal. A stray bolt or metal bracket will shatter an overly hard, brittle blade. This causes catastrophic chipping. Conversely, a blade that is too soft will dull rapidly, requiring constant rotation. Optimal performance demands a precise balance between hardness (edge retention) and toughness (impact resistance).

Common Steel Grades Evaluated

We evaluate steel grades based on their specific alloy composition. The right choice depends entirely on your material stream.

The Role of Vacuum Heat Treatment

Raw steel requires extensive processing to become a reliable industrial component. Controlled vacuum heat treatment serves as a mandatory evaluation criterion for any supplier.

Vacuum environments prevent oxidation during the heating phase. This ensures uniform core strength throughout the metal block. Many premium manufacturers also utilize cryogenic processing. They drop the steel to sub-zero temperatures. This alters the molecular structure, maximizing both wear resistance and structural stability. Skipping these steps leads directly to premature blade failure in the field.

4. Single Shaft vs. Multi-Shaft Blades: Application Matching

Facility managers often confuse the capabilities of different shredding architectures. Understanding when to deploy specific blade configurations prevents massive operational bottlenecks.

Distinct Cutting Actions

A single shaft system operates on a high-speed shearing principle. The rotor spins rapidly, taking precise bites out of the material block. In contrast, dual-shaft or quad-shaft systems operate at much lower speeds. They generate massive torque. Multi-shaft blades use a tearing and ripping action rather than a clean shear.

Output Size Requirements

The presence of a screen defines the output capability. Single shaft machines utilize a classifying screen mounted beneath the rotor. The material cannot exit the chamber until it passes through this screen. This guarantees a precise, uniform particle reduction.

Multi-shaft systems typically lack screens. They act as primary shredders. They reduce massive items into strips or random chunks. You use them for primary volume reduction, not for exact sizing.

Material Decision Matrix Chart

Use the following structural chart to quickly match your waste stream to the correct machinery and blade setup.

Always choose a high-quality waste recycling blade designed for your specific machine type to prevent operational mismatches.

5. Procurement Guide: Evaluating a Shredder Machine Blade Supplier

Sourcing reliable components requires strict technical vetting. A visual inspection cannot reveal poor heat treatment or improper metal composition.

OEM vs. High-Quality Aftermarket

The industry constantly debates OEM versus aftermarket sourcing. OEM blades offer guaranteed fitment. However, they carry a significant brand premium. The commercial reality shows that specialized aftermarket manufacturers can match or even exceed OEM specifications.

You can confidently qualify an aftermarket supplier if you verify their engineering capabilities. You should only pay the OEM premium if your machinery remains under a strict warranty that prohibits third-party parts. Otherwise, specialized toolmakers often provide better material upgrades for specific wear problems.

Verifiable Supplier Competencies

Do not rely on marketing brochures. Demand evidence of the following competencies before issuing a purchase order:

• Precision Machining: The supplier must possess advanced CNC machining capabilities. Blades require exact dimensional tolerances. If a bolt hole misaligns by a fraction of a millimeter, the blade will not seat correctly on the rotor. Poor seating causes vibration and eventual bolt shearing.

• Drawing & Customization Support: An elite supplier analyzes your specific wear data. They should offer CAD drawing support. They must demonstrate the ability to adapt cutting angles or upgrade material grades based on your actual facility conditions.

• Quality Assurance Documentation: Never buy undocumented steel. You must demand material composition reports via spectrometer testing. You should also request verifiable hardness testing certificates. These documents prove the steel matches the invoice specifications.

Conclusion

Maximizing the efficiency of your reduction equipment requires strict attention to component details. The correct single shaft shredder knife represents a carefully engineered balance. You must match the physical blade geometry, the underlying steel alloy, and the precise heat treatment protocol directly to your specific waste stream.

To improve your immediate operational uptime, take the following next steps:

1. Audit your current blade wear patterns. Look for signs of chipping or uneven wear across the rotor.

2. Identify your exact OEM machine model and note the current blade clearance gaps.

3. Request a technical consultation with a specialized manufacturer.

4. Submit a formal CAD drawing to secure a performance-focused quotation tailored to your specific material challenges.

FAQ

Q: How often should a single shaft shredder knife be rotated or replaced?

A: The frequency varies dramatically based on material abrasiveness and throughput volumes. Processing clean plastics might allow weeks between rotations, while shredding fiberglass requires weekly changes. You should emphasize visual inspections during daily maintenance. Monitor your machine's amperage draw; a sudden spike in power consumption strongly indicates dull blades requiring immediate rotation.

Q: Can I use the same waste recycling blade for wood and plastic?

A: Technically, you can use a general-purpose D2 flat knife for both materials. However, achieving optimal throughput requires material-specific geometries. Wood shatters easily upon impact, whereas plastic tends to melt under friction. For maximum efficiency and lower energy costs, operators should switch to a concave blade when shifting from rigid wood to flexible plastics.

Q: What happens if the gap between the rotor knife and stationary blade is too wide?

A: A wide gap prevents a clean shear. Flexible materials fold over the blade edges instead of cutting. This creates severe friction inside the chamber. The friction causes rapid melting of plastics, which quickly clogs the rotor and screen. You will also experience dramatic drops in energy efficiency and sudden machine stalls.

Q: Are your aftermarket blades compatible with my existing shredder?

A: Yes. High-quality aftermarket blades are fully compatible provided the manufacturer utilizes precise CNC machining. They must follow exact dimensional tolerances to match OEM specifications. Reputable suppliers successfully manufacture direct replacements for major global brands, including Vecoplan, Lindner, WEIMA, and ZERMA, ensuring perfect fitment and alignment.
