Yafei Flow Wrapper Knives-Precision Cutting Solutions for Horizontal Form-Fill-Seal Packaging. The cutting blade system is a critical performance component within any horizontal form-fill-seal (HFFS) packaging machine. Its primary function is to execute a clean, precise, and hermetic transverse cut, separating the continuously formed package into individual, finished products. The integrity of this cut directly dictates final package aesthetics, seal strength, and overall production line efficiency.
Key Technical Aspects:
Function: HFFS blades perform a simultaneous hot-knife cut and seal operation. They must cleanly sever the packaging material while melting the inner polymer layers to create a secure, tamper-evident end seal on the trailing end of one package and the leading end of the next.

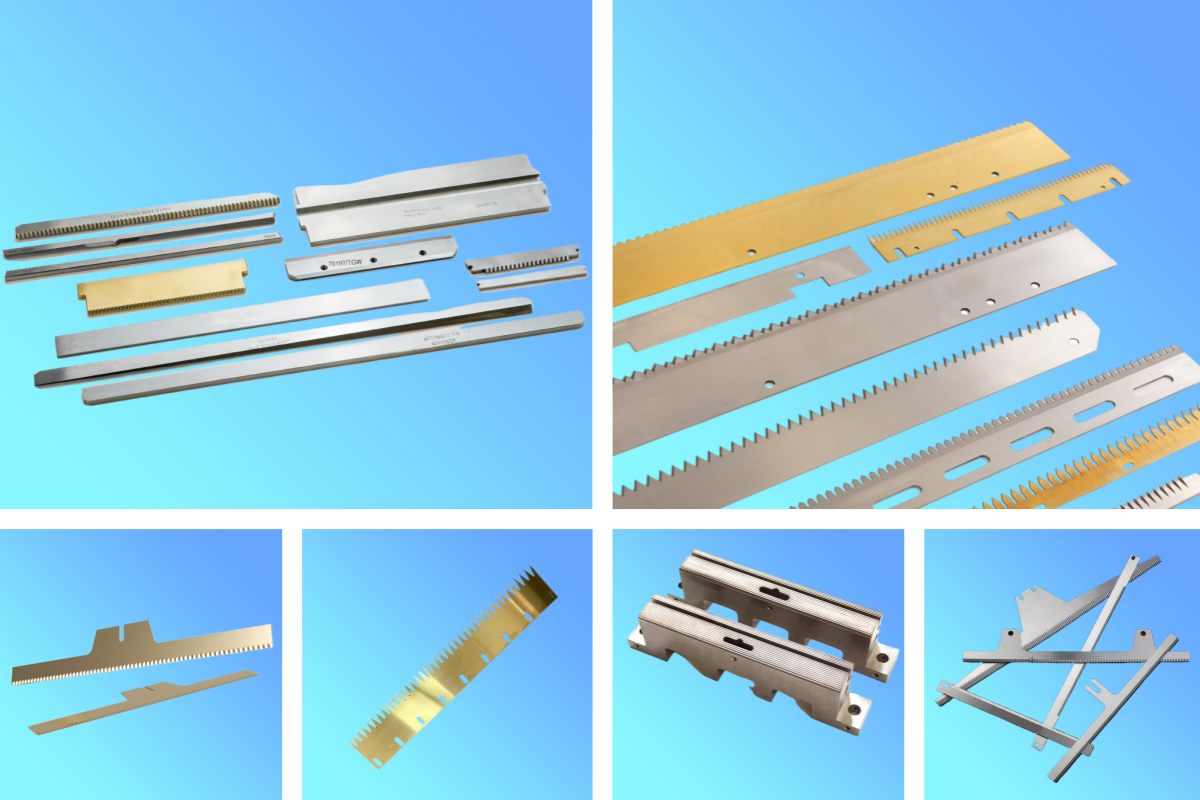

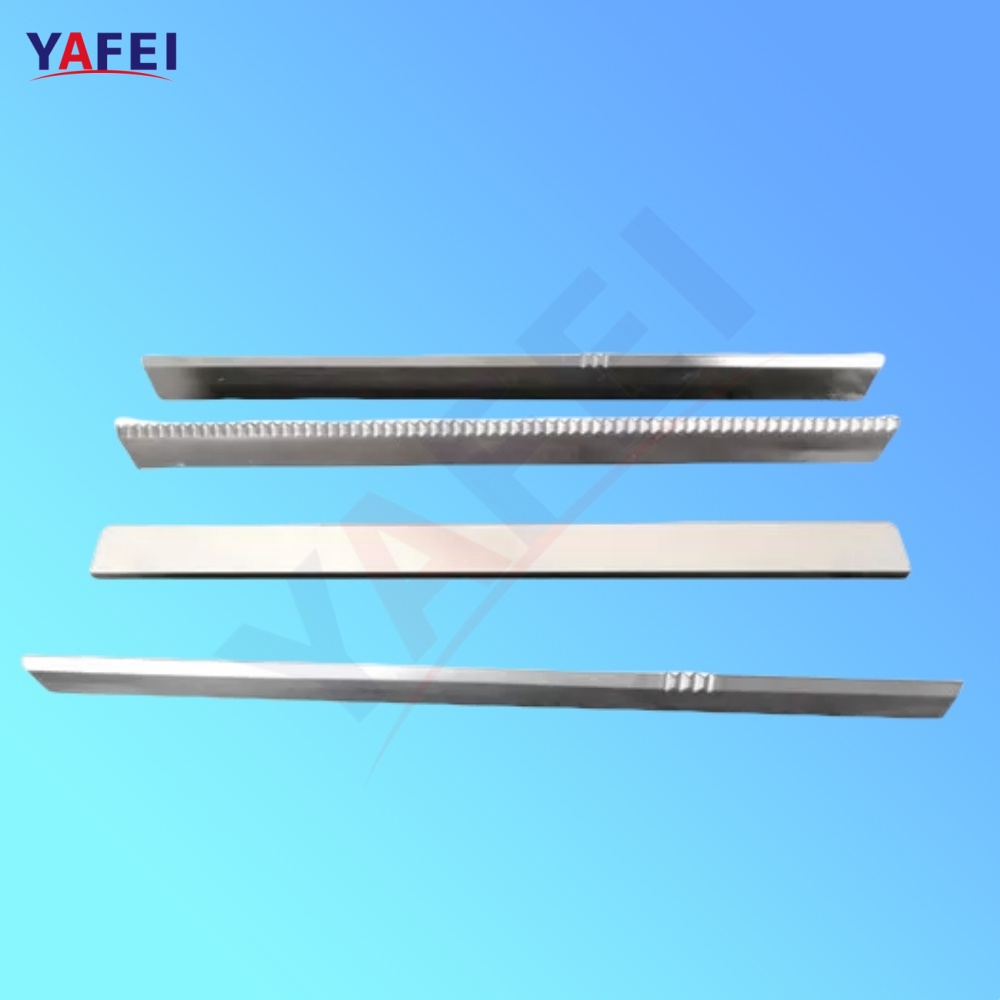

Blade Types & Profiles: Blades are engineered for specific applications:
Straight Knives: Deliver a clean, flat seal line. Require exceptional synchronization precision.

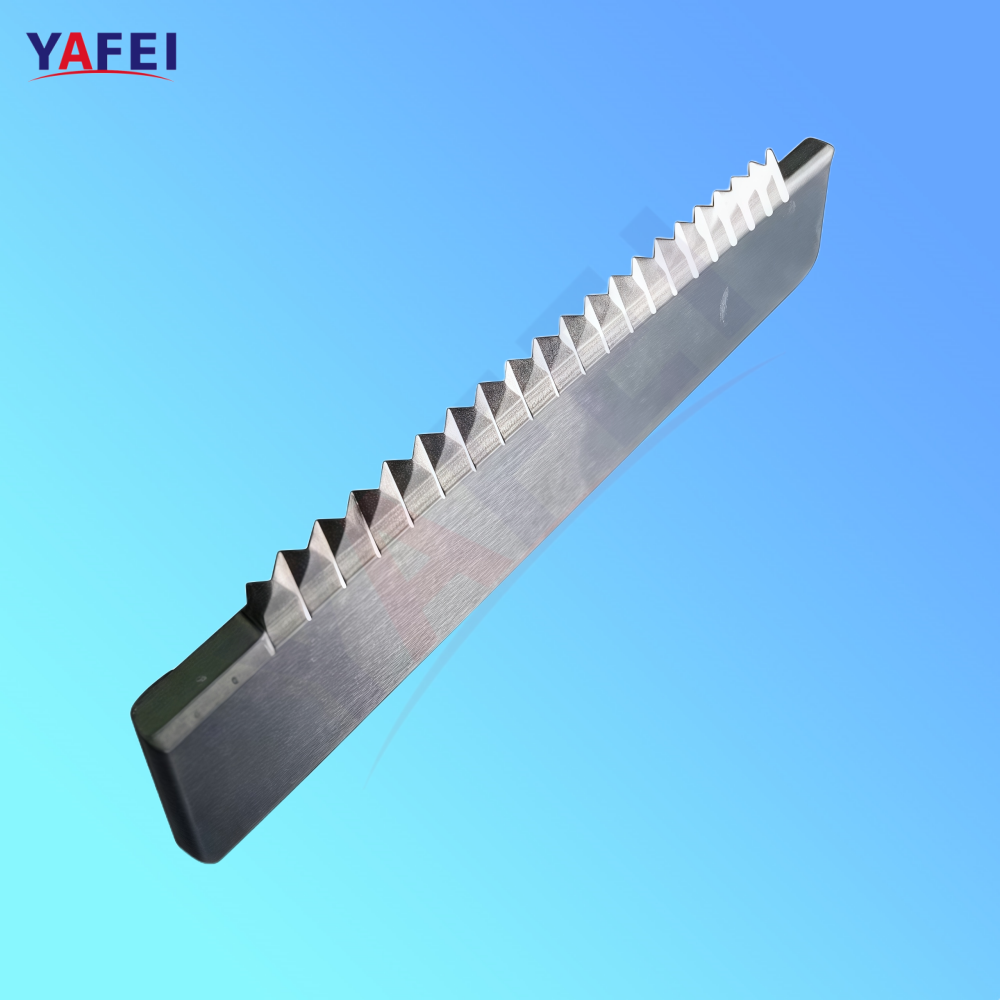

Serrated/Knurled Knives: Feature a tooth profile that grips the film, minimizing material stretching or slipping, ideal for challenging or multi-layer laminates.
Wave-Form Knives: Provide a scissor-like shearing action for reduced cutting force and extended blade life, excellent for thick or abrasive materials.
Material Science: Blade composition is selected for durability, edge retention, and compatibility with packaging materials.
Tool Steel: A cost-effective option for standard applications.
Stainless Steel (e.g., 440C): Offers superior corrosion resistance for food and moist environments.
High-Speed Steel (HSS): Provides excellent wear resistance and red-hardness, suited for high-speed operations or abrasive materials.
Critical Performance Factors:
Synchronization: Perfect timing between the cutting blade and the film web advancement is paramount to prevent incomplete cuts, dragging, or excessive blade wear.
Temperature Control: Precise thermal management of the blade is essential to achieve a clean seal without burning, charring, or compromising the material's integrity.
Pressure Adjustment: Optimal force must be applied to ensure a complete cut and seal without prematurely dulling the blade or damaging the machine's mechanical components.
Selecting the correct blade—with the appropriate profile, material grade, and coating—is essential for maximizing uptime, reducing maintenance costs, and ensuring a consistently high-quality package. Regular maintenance, including cleaning and inspection for wear, is crucial for sustaining peak performance and longevity of the HFFS packaging system.
Yafei Flow Wrapper Knives-Precision Cutting Solutions for Horizontal Form-Fill-Seal Packaging. The cutting blade system is a critical performance component within any horizontal form-fill-seal (HFFS) packaging machine. Its primary function is to execute a clean, precise, and hermetic transverse cut, separating the continuously formed package into individual, finished products. The integrity of this cut directly dictates final package aesthetics, seal strength, and overall production line efficiency.
Key Technical Aspects:
Function: HFFS blades perform a simultaneous hot-knife cut and seal operation. They must cleanly sever the packaging material while melting the inner polymer layers to create a secure, tamper-evident end seal on the trailing end of one package and the leading end of the next.
Blade Types & Profiles: Blades are engineered for specific applications:
Straight Knives: Deliver a clean, flat seal line. Require exceptional synchronization precision.
Serrated/Knurled Knives: Feature a tooth profile that grips the film, minimizing material stretching or slipping, ideal for challenging or multi-layer laminates.
Wave-Form Knives: Provide a scissor-like shearing action for reduced cutting force and extended blade life, excellent for thick or abrasive materials.
Material Science: Blade composition is selected for durability, edge retention, and compatibility with packaging materials.
Tool Steel: A cost-effective option for standard applications.
Stainless Steel (e.g., 440C): Offers superior corrosion resistance for food and moist environments.
High-Speed Steel (HSS): Provides excellent wear resistance and red-hardness, suited for high-speed operations or abrasive materials.
Critical Performance Factors:
Synchronization: Perfect timing between the cutting blade and the film web advancement is paramount to prevent incomplete cuts, dragging, or excessive blade wear.
Temperature Control: Precise thermal management of the blade is essential to achieve a clean seal without burning, charring, or compromising the material's integrity.
Pressure Adjustment: Optimal force must be applied to ensure a complete cut and seal without prematurely dulling the blade or damaging the machine's mechanical components.
Selecting the correct blade—with the appropriate profile, material grade, and coating—is essential for maximizing uptime, reducing maintenance costs, and ensuring a consistently high-quality package. Regular maintenance, including cleaning and inspection for wear, is crucial for sustaining peak performance and longevity of the HFFS packaging system.
